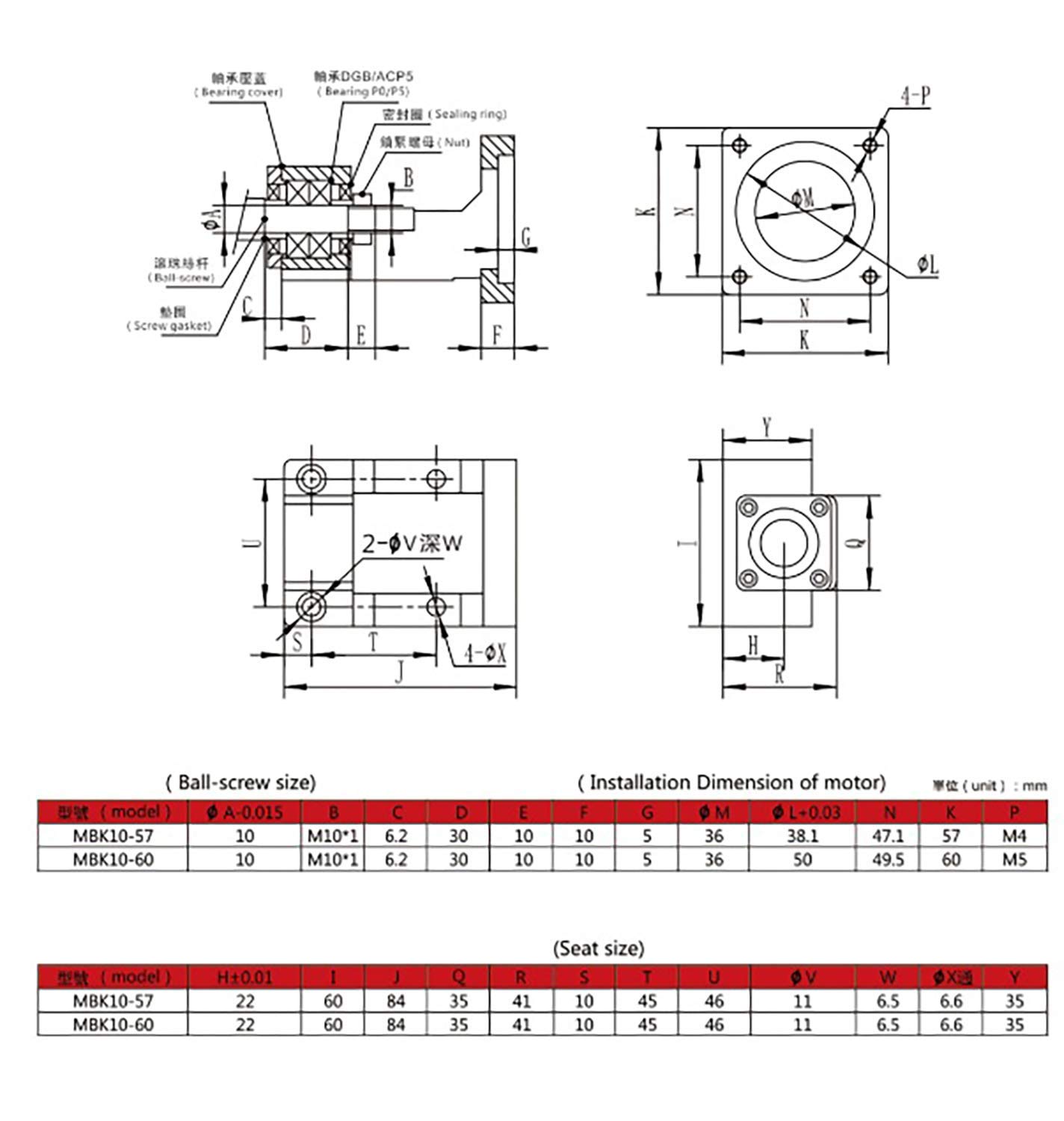

Nema 23 Stepper Motor Steel Mounting Bracket and BK10 Ball Screw Fixed End Supports Bearing Mount for 57mm Nema 23 Motor and 12mm CNC Ball Screw Ballscrew Kit SFU1204 SFU1202

Specifications: Brand: MssoommMaterial: Cast steelModel: MBK10-57 for Ball Screw 1204 12mm and 57 / Nema 23 Stepper MotorThis item includes:1pcs Housing 1pcs Gland2pcs Topping Ring2pcs Skeleton oil seal2pcs Deep Groove Ball Bearing (if you need angular contact bearing, you could message us, we will ship it from China)1pcs M10 Locknut Customizable lengths:We can provide the ball screw set in any length that you want, and please let us know for what lengths are suitable for you then we will calculate the total costs for you as soon as possible.If you need processing according to your drawings, please tell us and send the drawing before order.

• This product is functionally equivalent the BK 10fixed bearing block end support for Ball Screw 12mm and fixed seat / motor bracket for 57mm Nema 23 Stepper Motor
• Integrated motor mount positioning holes and the fixed bearing end support block mounting hole take the integrated processing, to ensure motor shaft, coupling axial, axial bearing hole, and ball screw axis all in a line strictly, make the ballscrew kit anad the transmission system run more accurately, less noise and longer life
• During the use of the product, any problem, any technical support, give us Amazon message, we solve it
• The material is cast steel, high hardness, shock resistance and high precision machining
• We can also offer the ball screw set in any length, including ball screw, nut, nut housing, support, coupling, and the seat, just contact us
